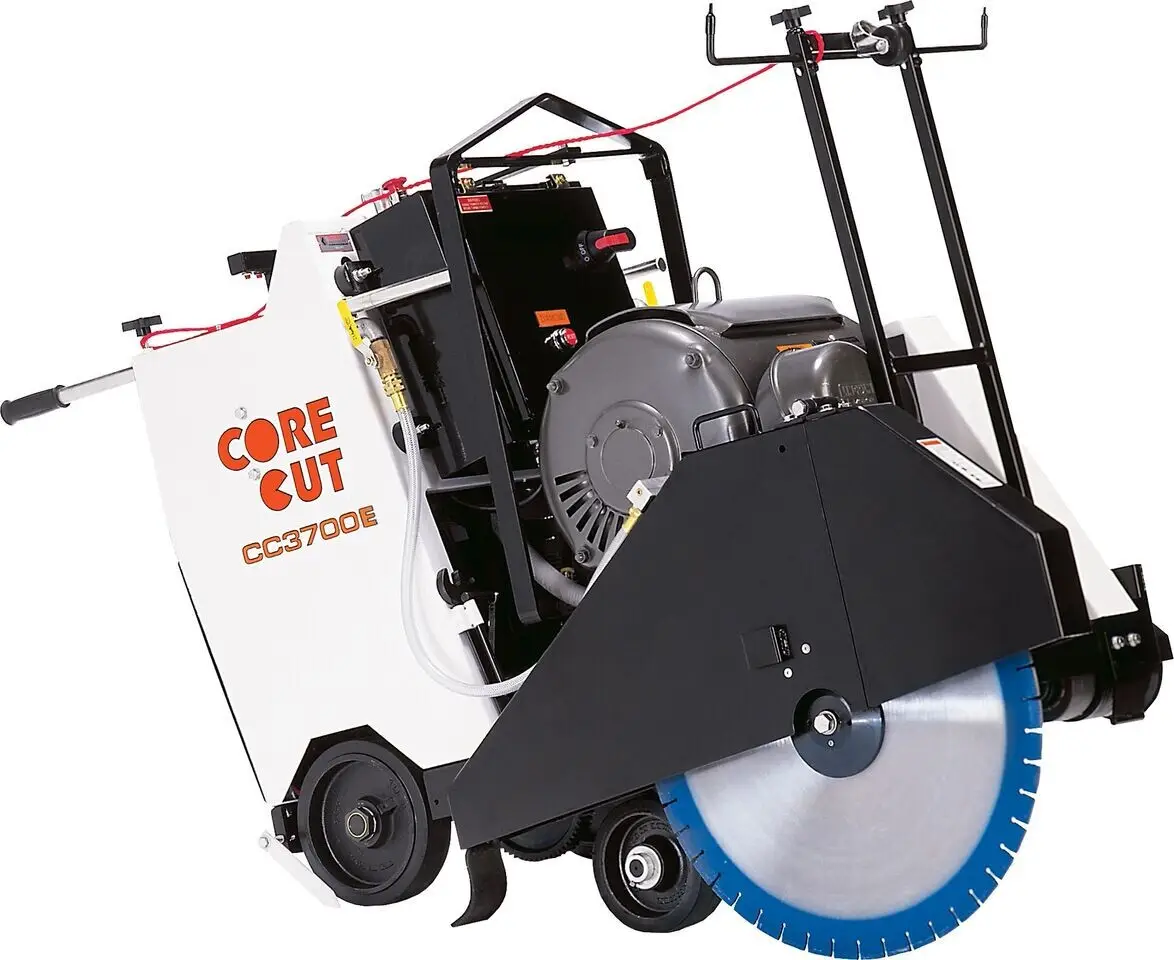

Powerful Multi = Application Saw.
Big Power That Fits Through a 30″ Door Frame
14”-42” Blade Capacity
Frame designed for higher torque from high horsepower engines
Forward position motor for more weight at the blade and less on the operator
Self propelled
Single or three speed models
Front pivot allows easy turning
Multi-function control handle
SKU #: 14310 – Soft start upgrade for CC3700E
Specifications:
| Maximum depth of cut with 14” blade: | 4-1/2” |
| Maximum depth of cut with 20” blade: | 7-1/2” |
| Maximum depth of cut with 26” blade: | 10-1/2” |
| Maximum depth of cut with 30” blade: | 11-3/4” |
| Maximum depth of cut with 36” blade: | 14-3/4” |
| Maximum depth of cut with 42” blade: | 17-1/4” |
| Blade shaft diameter: | 1-3/4” |
| Arbor size: | 1” with drive pin |
| Blade shaft drive: | 8 belt |
| Blade mounting: | Right or Left |
| Blade raise & lower: | Electro-hydraulic pump |
| Transmission: | Eaton Model 10 |
| Drive speed: | 0-200 feet/min |
INCLUDES: Electric Start, Telescoping front pointer, Hour meter, Cutting depth indicator, Frame lift, Quick disconnect blade flanges.
