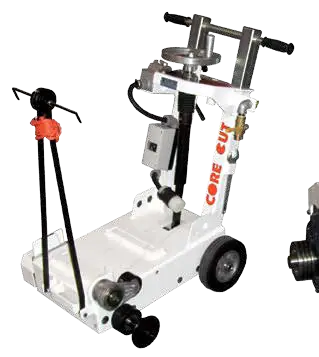

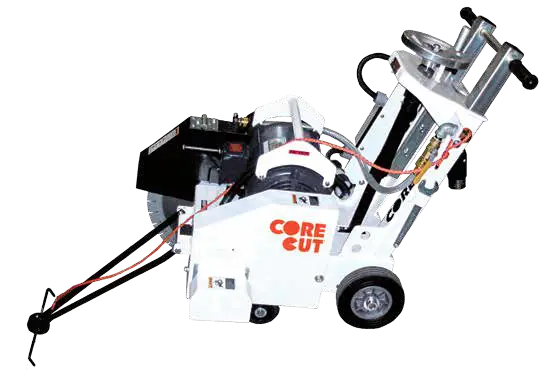

| Core Cut CC1507E3-20 – Modular Saw – CC1500E – 7HP 460v – 3ph Baldor Electric |
- Electric powered for areas with limited access and where exhaust fumes are not allowed
- Easy to maneuver push drive

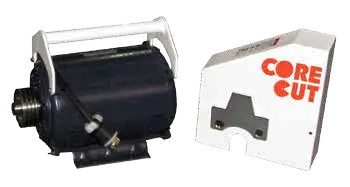

- Motor can be removed in limited access areas to allow for a single person operation
- Lightweight aluminum frame

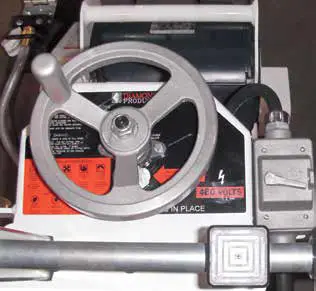

- Screw feed raise and lower
- Heavy duty handle design
| Maximum depth of cut with 14” blade: | 4-5/8” |
| Maximum depth of cut with 18” blade: | 6-1/2” |
| Maximum depth of cut with 20” blade: | 7-1/2” |
| Blade shaft RPM: | 2,000 |
| Blade shaft diameter: | 1-1/4” |
| Arbor size: | 1” with drive pin |
| Blade Raise/Lower: | Precision screw feed |
| Handle Bars: | Adjustable |
Blade Capacity – 20″
Motor Engine Power – 7.5 HP-3PH, 460V
Engine/Motor Make- Baldor®
Power Source – 5801500
Part Number – 19131
